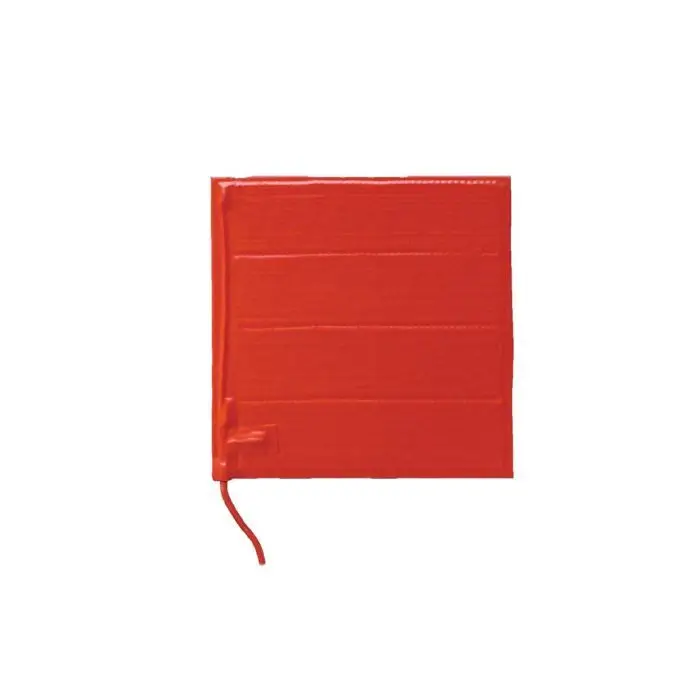

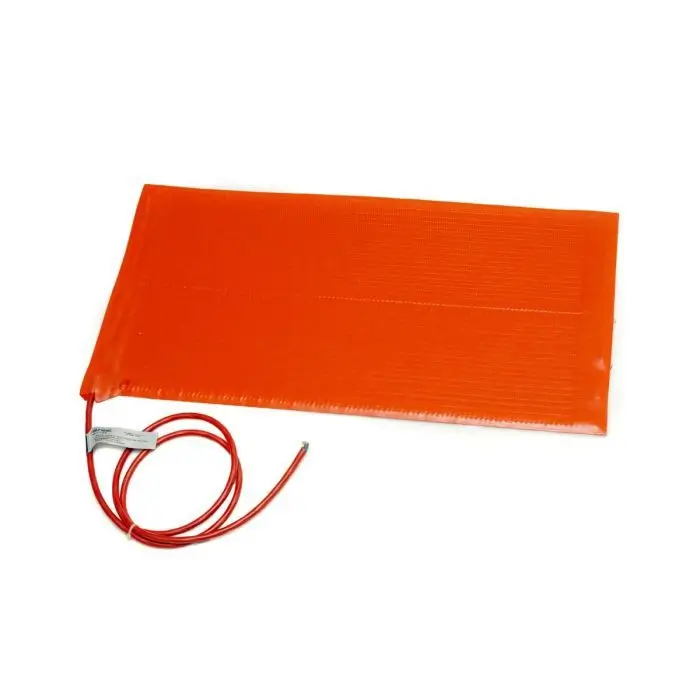

BriskHeat Heavy-Duty Silicone Rubber Heating Blanket
BriskHeat Heavy-Duty Silicone Rubber Heating Blanket
BriskHeat Heavy-Duty Silicone Rubber Heating Blanket

BriskHeat Heavy-Duty Silicone Rubber Heating Blanket

Starting at: $91.00

Call 800-321-8007 or fill out our online form today to order this product or to speak with a Hi-Watt application specialist.

Categories: , , ,

Description

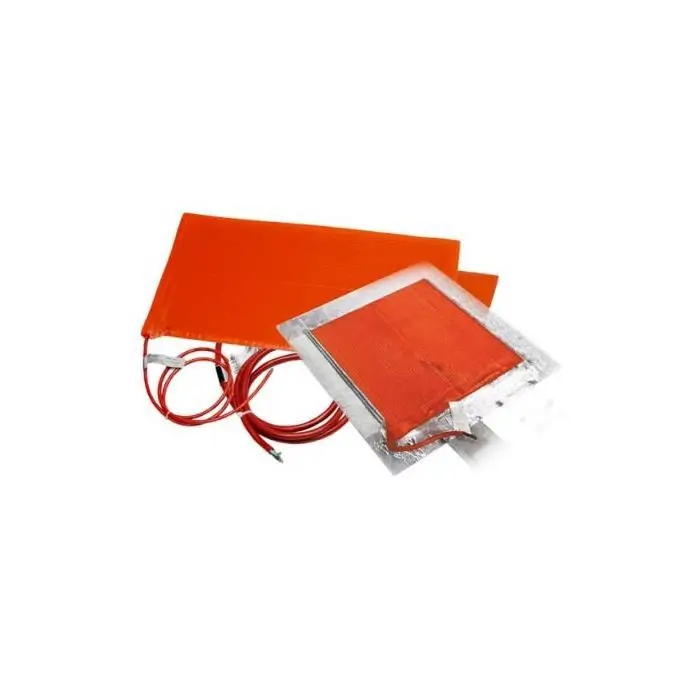

Available in SRL Series (for Metal Surfaces) or SRP (for Plastic Surfaces)

BriskHeat’s SRL and SRP Heating Blankets offer rapid heat-up and uniform heat distribution for freeze protection, process control, and viscosity control applications. They are designed with heavy-duty silicone rubber for exceptional chemical and moisture resistance. Hi-Watt carries SRL and SRP in a wide array of sizes—find yours today!

Note: Product requires a temperature controller.

0/5 (0 Reviews)
  • Optional PSA Adhesive: BriskHeat’s SRL and SRP series feature an optional pressure-sensitive adhesive backing to ensure security and improved heat transfer for installations on curved or irregular surfaces.
  • Optional Built-in Thermostat: Reduce safety risks with BriskHeat’s optional built-in high-limit thermostat.
  • Durable Design: BriskHeat’s heating blankets feature two layers of 20 mil fiberglass-reinforced, industrial-strength rubber silicone for superior durability and moisture, chemical, and radiation resistance.
  • Uniform Heat Distribution: The SRL and SRP are designed to rapidly and uniformly heat storage tanks, silos, hoppers, presses, conveyors, vats, and low-temperature ovens.
  • Custom Sizes Available: Don’t see the specific sizes you need? Call Hi-Watt at (855) 467-5628 to learn more about our custom options.

As a turnkey supplier, Hi-Watt offers industrial businesses complete product support, including selection assistance, on-site installation and configuration guidance, ongoing technical support, and ISO 17025-compliant calibration services. We’re here to keep your processes running efficiently.

Download Specs

Power Density 2.50 W/in2 (SRL)
1.25 W/in2 (SRP)
Voltage 120 to 600 VAC single-phase
Exposure Temperature -60 to 450°F (-51 to 232°C)
Nominal Thickness 3/16 in.
Bend Radius 2-3 in.
Dielectric Strength 2000V+
Silicone Rubber Density 46 oz/yd2
Power Cord 48 in.
IP Rating IP56
Total Watts Varies based on model. See spec sheet for more information.
Part Number/SKU Voltage Surface Width Length PSA Adhesive Pricing
SRL06121P 120V For Metal 6″ 12″ Yes $100.75
SRL06241P 120V For Metal 6″ 24″ Yes $144
SRL06361P 120V For Metal 6″ 36″ Yes $210
SRL06121 120V For Metal 6″ 12″ No $91
SRL06241 120V For Metal 6″ 24″ No $120
SRL06361 120V For Metal 6″ 36″ No $183
SRL12121P 120V For Metal 12″ 12″ Yes $144
SRL12241P 120V For Metal 12″ 24″ Yes $234
SRL12361P 120V For Metal 12″ 36″ Yes $393
SRL12121 120V For Metal 12″ 12″ No $120
SRL12241 120V For Metal 12″ 24″ No $205
SRL12361 120V For Metal 12″ 36″ No $340
SRL18181P 120V For Metal 18″ 18″ Yes $297
SRL18361P 120V For Metal 18″ 36″ Yes $571
SRL18181 120V For Metal 18″ 18″ No $262
SRL18361 120V For Metal 18″ 36″ No $504
SRL24241P 120V For Metal 24″ 24″ Yes $455
SRL24241 120V For Metal 24″ 24″ No $393
SRL24361 120V For Metal 24″ 36″ No $537
SRL06122P 240V For Metal 6″ 12″ Yes $100.75
SRL06242P 240V For Metal 6″ 24″ Yes $144
SRL06362P 240V For Metal 6″ 36″ Yes $210
SRL06122 240V For Metal 6″ 12″ No $91
SRL06242 240V For Metal 6″ 24″ No $120
SRL06362 240V For Metal 6″ 36″ No $183
SRL12122P 240V For Metal 12″ 12″ Yes $144
SRL12242P 240V For Metal 12″ 24″ Yes $234
SRL12362P 240V For Metal 12″ 36″ Yes $393
SRL12122 240V For Metal 12″ 12″ No $120
SRL12242P 240V For Metal 12″ 24″ No $234
SRL12362 240V For Metal 12″ 36″ No $340
SRL18182P 240V For Metal 18″ 18″ Yes $297
SRL18362P 240V For Metal 18″ 36″ Yes $571
SRL18182 240V For Metal 18″ 18″ No $262
SRL18362 240V For Metal 18″ 36″ No $504
SRL24242P 240V For Metal 24″ 24″ Yes $455
SRL24242 240V For Metal 24″ 24: No $393
SRP06121P 120V For Plastic 6″ 12″ Yes $100.75
SRP06241P 120V For Plastic 6″ 24″ Yes $144
SRP06361P 120V For Plastic 6″ 36″ Yes $210
SRP06121 120V For Plastic 6″ 12″ No $91
SRP06241 120V For Plastic 6″ 24″ No $120
SRP06361 120V For Plastic 6″ 36″ No $183
SRP12121P 120V For Plastic 12″ 12″ Yes $144
SRP12241P 120V For Plastic 12″ 24″ Yes $234
SRP12361P 120V For Plastic 12″ 36″ Yes $393
SRP12121 120V For Plastic 12″ 12″ No $120
SRP12241 120V For Plastic 12″ 24″ No $205
SRP12361 120V For Plastic 12″ 36″ No $340
SRP18181P 120V For Plastic 18″ 18″ Yes $297
SRP18361P 120V For Plastic 18″ 36″ Yes $571
SRP18181 120V For Plastic 18″ 18″ No $262
SRP18361 120V For Plastic 18″ 36″ No $504
SRP24241P 120V For Plastic 24″ 24″ Yes $455
SRP24361P 120V For Plastic 24″ 36″ Yes $652
SRP24241 120V For Plastic 24″ 24″ No $393
SRP24361 120V For Plastic 24″ 36″ No $537
SRP06122P 240V For Plastic 6″ 12″ Yes $100.75
SRP06242P 240V For Plastic 6″ 24″ Yes $144
SRP06362P 240V For Plastic 6″ 36″ Yes $210
SRP06122 240V For Plastic 6″ 12″ No $91
SRP06242 240V For Plastic 6″ 24″ No $120
SRP06362 240V For Plastic 6″ 36″ No $183
SRP12122P 240V For Plastic 12″ 12″ Yes $144
SRP12242P 240V For Plastic 12″ 24″ Yes $234
SRP12362P 240V For Plastic 12″ 36″ Yes $393
SRP12122 240V For Plastic 12″ 12″ No $120
SRP12242 240V For Plastic 12″ 24″ No $205
SRP12362 240V For Plastic 12″ 36″ No $340
SRP18182P 240V For Plastic 18″ 18″ Yes $297
SRP18362P 240V For Plastic 18″ 36″ Yes $571
SRP18182 240V For Plastic 18″ 18″ No $262
SRP18362 240V For Plastic 18″ 36″ No $504
SRP24242P 240V For Plastic 24″ 24″ Yes $455
SRP24362P 240V For Plastic 24″ 36″ Yes $652
SRP24242 240V For Plastic 24″ 24″ No $393
SRP24362 240V For Plastic 24″ 36″ No $537
