Custom Industrial Process Heater Design

Hi-Watt carries many stock heater types available for same-day shipment, but some applications may require customized designs. As a turnkey supplier, Hi-Watt has the resources and expertise needed to design custom heaters in-house. Our custom industrial process heater designs have proven to increase productivity, reduce scrap rates, and ensure product quality in a variety of industries, from military and defense to food and beverage.

Speak With an Expert

What can we design for you? Contact us today, and our team will aim to provide a response same-day.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Name*
Please describe your process heating application or thermal system challenge you’re experiencing.

What We Design

Hi-Watt configures industrial heaters from flexible blankets to immersion models, and partners with trusted brands, including Watlow and Tempco. All heaters are customized to meet application requirements.

Cartridge

Cartridge

  • Custom Diameters & Lengths
  • Split-Sheathed Designs
  • Distributed Wattage
  • Embedded Thermocouples
  • Moisture-Resistant Seals
  • Straight, Right Angle, & Side Lead Exits
  • Hot or Cool Tips
  • Direct Installation Into Drilled Holes

Band

Band

  • Clamps Around Cylindrical Surfaces
  • Mica, Ceramic, & Mineral-Insulated Configurations
  • One-, Two-, & Multi-Construction
  • Cutouts & Holes for Sensors & Nozzles
  • Multiple Diameters, Widths, & Terminal Locations

Nozzle

Nozzle

  • Designed for Injection Molding Nozzles
  • Integrated Cartridge-Style Elements
  • Coil, Band, & Cast Styles
  • Customizable Inside Diameter & Length
  • Round, Square, & Rectangular Profiles
  • Distributed Wattage
  • Integrated Thermocouples
  • Configurable Lead Exit Direction
  • Brass or Stainless Steel Jackets

Duct/Air

Duct/Air

  • Sized to the Duct Opening
  • Open Coil, Finned Tubular, & Tubular Element Options
  • NEMA Enclosures
  • Built-in Control Panels
  • Airflow Switches
  • Staging Steps
  • High-Limit Cutouts
  • Flange or Slip-in Mounting Configurations

Infrared

Infrared

  • Fast, Non-Contact Surface Heating
  • Quartz, Ceramic, & Metal-Sheath Options
  • Multiple Panel Sizes & Shapes
  • Reflector Designs
  • Zone Control
  • Integrated Pyrometers

Cable & Hose

Cable & Hose

  • Flexible
  • Ideal for Freeze Protection Applications
  • Made to Custom Length
  • Fixed Watt or Self-Regulating Cables
  • Silicone, Fiberglass, & PTFE Insulation Options
  • Temperature Ratings & End Fittings Matched to the Line Being Heated
  • Built-in Sensors
  • Overjackets & Insulated Jackets

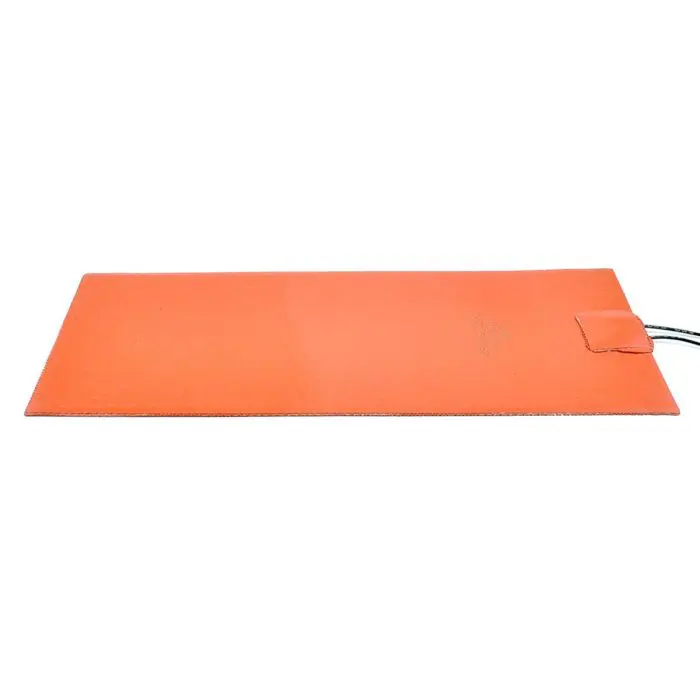

Flexible

Flexible

  • For Use on Irregular or Flat Surfaces
  • Custom Contours & Shapes
  • Cutouts & Holes
  • PSA Adhesive Options

Strip

Strip

  • Bolted to Flat Surfaces
  • Customizable Widths, Lengths, & Thicknesses
  • Straight, Finned, & Mineral-Insulated Design Options
  • Hole, Slot, Clamp, & Bracket Mounting
  • Multiple Terminal Locations

Immersion

Immersion

  • Made for Fluid Applications
  • Screw-Plug, Flange, & Over-the-Side Models
  • Customizable Fitting Sizes, Flange Sizes, Pressure Class, Immersed Length, & Sheath Material
  • General Purpose, Moisture-Resistant, & Explosion-Proof Enclosures
  • Integrated Thermostats or Thermowells

Circulation

Circulation

  • Inline Heaters for Environmental Chambers or Closed Loop Systems
  • Customizable Vessel Size, Material, Pressure Rating, Inlet & Outlet Sizes, & Orientation
  • Optional Baffles, Insulation, Drains, Vents, Flow Switches, & Thermocouples

Tubular

Tubular

  • Bent to Any Shape
  • Customizable Sheath Diameter & Material
  • Sealed Terminals
  • Finned Tubular Options for Air Heating

Common Features


Multi-Zone Heating


Staged Heating


Thermocouple Integration


Weatherproofing


Explosion-Proof Enclosures


Hazardous Use Designs


Ra-Rated Surfaces

Additional Capabilities

  • UL 508A-Compliant Panels
  • Sensor Configuration & Installation Guidance
  • Control System Engineering & Tuning
  • Retrofit Assistance
  • Process Heater Sizing
  • Remote Troubleshooting
  • Thermal System Assessments
  • Field Repairs & Calibrations

Benefits of Working With Hi-Watt

  • Custom Turnkey Solutions
  • Responsive, Same-Day Communication
  • Fast Turnaround
  • Product Training
  • Post-Sales Support

Brand Partners

Watlow Logo
Nexthermal logo
Chromalox Logo
BriskHeat Logo
Tempco Logo

See Our Impact

Carbon fiber being manufactured

Hi-Watt Delivers Custom Platens & Control System for UAV Composite Curing

Read More
A heated platen system

Hi-Watt Designs Custom Multi-Zone Heated Platen System

Read More
A window overlooking two scientists in a lithium ion battery research lab

Engineering Solutions for Critical Government Applications

Read More
Dozens of juice-filled bottles line a conveyor system inside of food and beverage processing facility

Heating the Food & Beverage Industry

Read More

FAQs

Hi-Watt’s in-house engineers review your application requirements, including:

  • Operating temperature
  • Environmental considerations, including exposure to moisture, caustic or corrosive materials, and UV rays
  • The surface being heated
  • The material(s) being heated
  • Installation location
  • Existing electrical supply
  • Certification requirements

Too high or low watt density is one of the most common issues we see when we’re assessing a thermal system. Instead of calculating watt density on your own, contact our application specialists today at (855) 467-5628. Our team can help you determine the required watt density for the surface area you’re heating.

Industrial heaters come in a range of design configurations, including band, immersion, and circulation. The right style primarily comes down to what you’re heating (is it a vat of liquid, an entire tank, an area of a room, glass materials, a platen, etc.)

Yes. Hi-Watt can incorporate thermocouples and RTD sensors into heater designs, based on application requirements.

Yes. Hi-Watt frequently supports retrofits. We can perform an assessment of your existing controls system to determine heater compatibility.

The timeline of a custom heater project varies based on part availability and project complexity. When you contact us, provide a desired timeline and we will determine project feasibility.
