Starting at: $750.00

Call 800-321-8007 or fill out our online form today to order this product or to speak with a Hi-Watt application specialist.

Categories: , , ,

Description

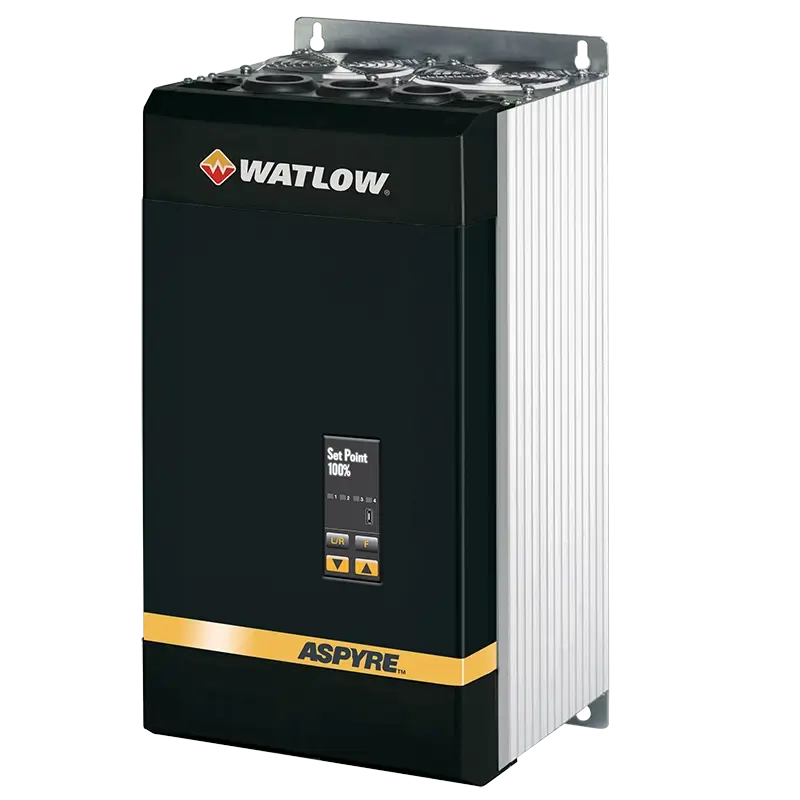

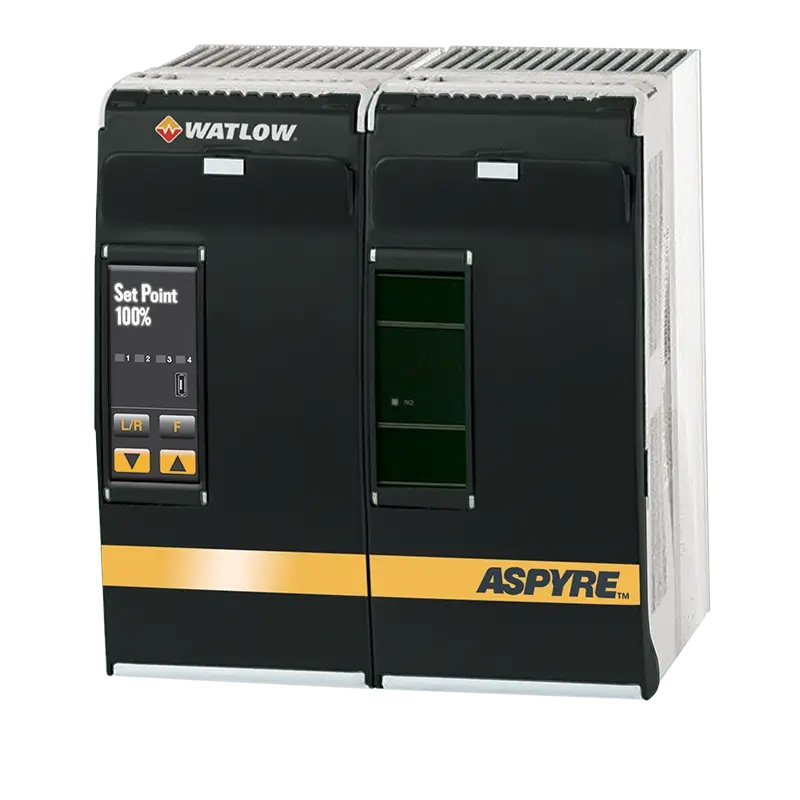

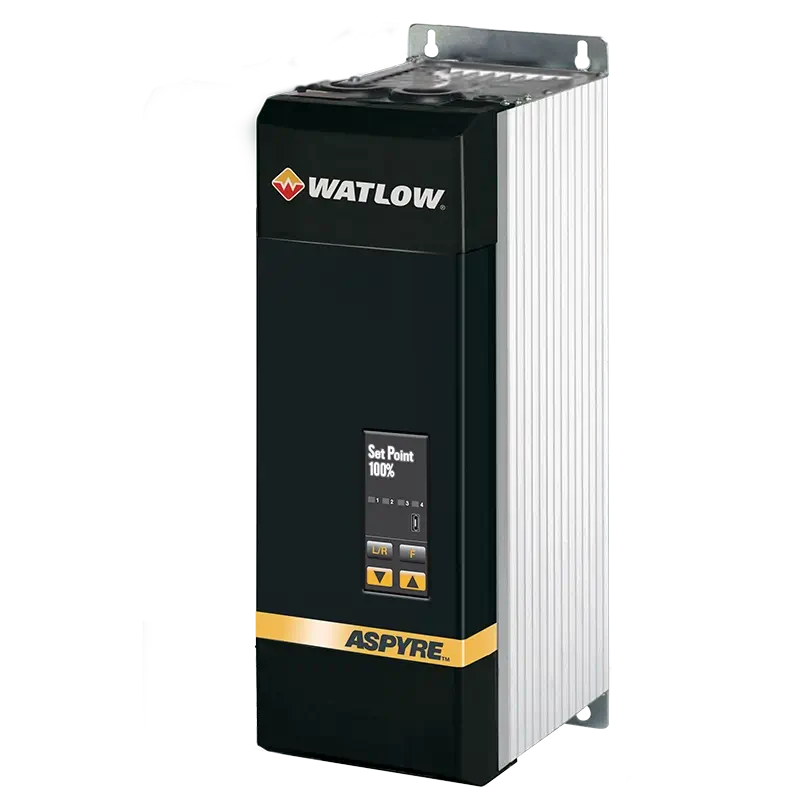

Get ultimate control, flexibility, and scalability with Watlow’s modular ASPYRE DT SCR Power Controller. Available in a wide range of configurations, this controller is customized to meet your application requirements and can include data logging or cooling fans, as needed. The controller features advanced firing and control mode algorithms and diagnostics for nichrome, moly, silicon carbide, tungsten quarts, infrared lamps, and transformer-coupled loads, and helps prevent heater bakeout in semiconductor, oil and gas, plastics, packaging, and heat treatment applications.

0/5 (0 Reviews)
  • Advanced Firing: The ASPYRE DT offers multiple advanced microprocessor-based firing and control mode algorithms, including zero-cross, burst firing, single cycle, delayed triggering, and phase angle.
  • Intuitive Interface: This power controller features an integrated user interface, a current transformer, and semiconductor fusing, reducing installation and setup times.
  • Robust SCR Design: The ASPYRE DT is designed to withstand conditions in rugged industrial environments.
  • Integrated Diagnostics: This controller allows fast troubleshooting with integrated thermal system diagnostics.
  • Customizable: This controller is available in simple single-phase or complex three-phase configurations, supports multiple communication protocols, and offers optional data logging.

Get industry-leading support from Hi-Watt. Our experts can provide product recommendations, configuration guidance, integration assistance, and ongoing technical support and field services, including repairs and ISO 17025-compliant calibrations.

View Spec Sheet
Power Base Up to 3 controlled legs
Phase Up to 3
Amp Range 35-2100A
Load Voltage 480 VAC, 600 VAC, or 690 VAC
Auxiliary Power Input Range 100-690 VAC
Communication Protocols Supports Modbus, Profibus DP, Profinet, and EtherNet/IP
Data Logging Not standard, but optional
Cooling Fan Not standard, but optional. Cooling fan comes in 120 or 240 VAC voltages, or 24VDC

The chart below breaks down some of the most common configurations we see at Hi-Watt, but the list is not exclusive. Download the sheet below for guidance on available options and how to order.

View Ordering Information
Part Number/SKU Ph Maximum Line & Load Voltage Controlled Legs # Amperage Aux Power Cooling Fan Communication Protocol Data Logging
DT2480604B04AAA 3 480 VAC 2 60A 380, 400, 415, 440, or 480 VAC No Profinet No
DT2481804B10AAA 3 480 VAC 2 180A 380, 400, 415, 440, or 480 VAC Yes, 120 VAC No additional No
DT2482104B10AAA 3 480 VAC 2 210A 380, 400, 415, 440, or 480 VAC Yes, 120 VAC No additional No
DT2481204D10AAA 3 480 VAC 2 120A 380, 400, 415, 440, or 480 VAC Yes, 120 VAC No additional No
DT2483004B10AAA 3 480 VAC 2 300A 380, 400, 415, 440, or 480 VAC Yes, 120 VAC No Additional No
