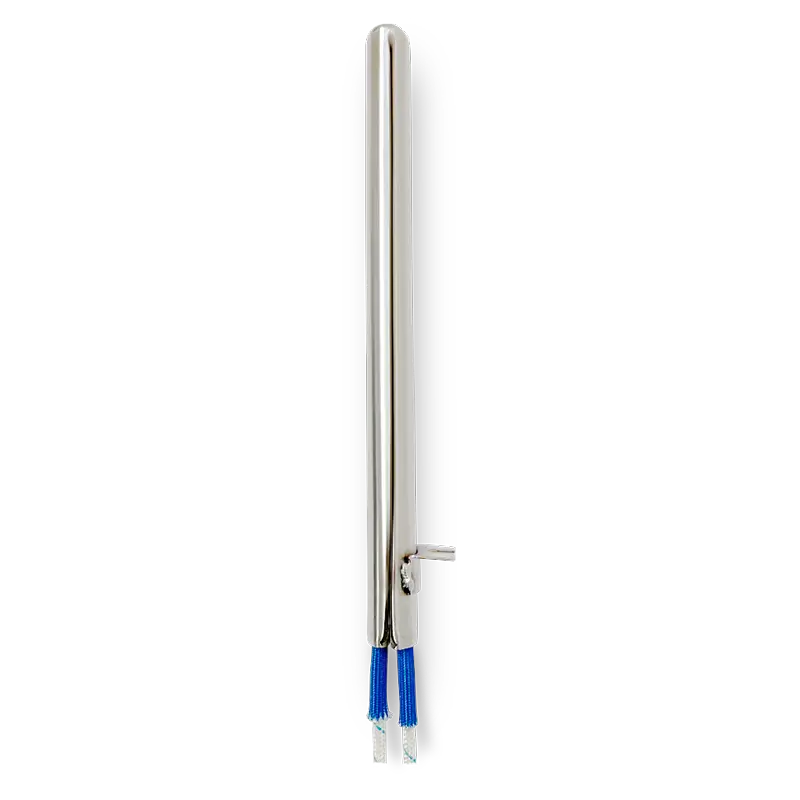

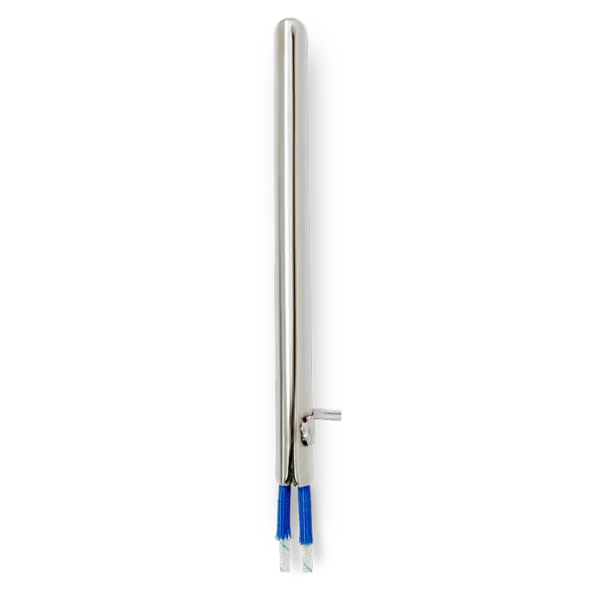

DALTON Watt-Flex® Split-Sheath Cartridge Heater

DALTON Watt-Flex® Split-Sheath Cartridge Heater

Call 800-321-8007 or fill out our online form today to order this product or to speak with a Hi-Watt application specialist.

Categories: , , ,

Description

Eliminate bore seizures with Dalton’s revolutionary Watt-Flex® split-sheath cartridge heater. When compared to traditional cartridge heaters, the Watt-Flex® uses less power and can last up to five times longer. Its patented split-sheath design helps provide greater contact with the wall of the bore, maximizing heat transfer, and can help reduce your average costs by nearly 40%.

0/5 (0 Reviews)
  • Improved Maintenance: Because Watt-Flex® has a unique split-sheath design, it contracts when cold, so it can be easily removed from the bore, and is particularly ideal for oversized bores.
  • Zero Bore Seizures: Its split-sheath design eliminates any risk of bore seizures and expensive drillouts.
  • Uses Less Energy: Watt-Flex® maximizes heat transfer, which not only results in safer, uniform heating but also less waste.
  • Better Performance & Durability: This cartridge heater delivers 50% higher watt densities and operating temperature up to 1,832 degrees Fahrenheit than traditional cartridge heaters.
  • Distributive Wattage: Watt-Flex® integrates distributed wattage technology that allows operators to vary the wattage along the length of the heater.

  • High-Grade MgO Dielectric Core: Many traditional cartridge heaters use a ceramic core, but the Watt-Flex® incorporates compacted high-grade MgO to increase dielectric strength and improve heater life.
  • Hot or Cool Tips: These heaters are customized for hot or cool tips, depending on application needs.
  • Single Continuous Heating Coil: The Watt-Flex® features a continuous coil to ensure better uniformity.
  • High-Strength Construction: Watt-Flex® features an Incoloy sheath for added corrosion resistance and strength, nickel chromium resistance wire to improve performance, and stainless steel terminals to ensure secure connections.
  • Protected Lead Wires: Dalton offers two straight or right-angle headers for the Watt-Flex: 1) A stainless steel braid, or 2) a stainless steel BX interlocking hose.
  • Lead Options: Watt-Flex® can come with standard temperature leads, standard temperature Teflon leads, high-temperature leads, fiberglass or rubber sleeving, quick disconnect, or threaded post terminals.

At Hi-Watt, we understand that every process has different requirements. Our team can help you find and customize the right solution for your application, provide installation assistance, and offer ongoing technical support as needed.

Available Diameters 1/4″ to 1″
Nominal Diameters 0.245″ to 0.9925″
Minimum Length As small as 1”, depending on heater diameter
Maximum Length As large as 90”, depending on heater diameter
