Starting at: $370.00

Call 800-321-8007 or fill out our online form today to order this product or to speak with a Hi-Watt application specialist.

Categories: , , ,

Description

Eurotherm’s 3200 Series, including model 3216, is a single-loop controller that provides precision temperature and process variable control for plastics extrusion, heat treatment, thermal forming, and stress-relieving applications. The 3216 is designed for easy integration and can be shipped preconfigured to your requirements, helping you achieve “Out of the Box” operation.

0/5 (0 Reviews)
  • Quick Start: All 3200 Series controllers, including the 3216, feature a Quick Start code that lets you preconfigure them with all the functions you need to control your process.
  • Multi-Language Capabilities: This controller’s intuitive screen displays text messages in English, German, French, Spanish, or Italian.
  • Optional Advanced Features: You can use Eurotherm’s iTools, a configuration wizard to add even more advanced functions.
  • Custom Alerts: The 3216 controller can be configured to display custom messages for specific events, alarms, or process conditions to ensure operator visibility.
  • Remote Analog Option: All 3200 Series controllers, including the 3216, can feature an optional remote analog input in either volts or mA, which can be programmed by a master controller or PLC.
  • Multiple Product Support: You can use the configuration wizard to select new recipes for different products.
  • Configurable Internal Time: This controller has an internal interval timer and delay timer, as well as soft start options for hot runner systems.
  • Communications Support: The 3216 controller supports 4-wire EIA-485.

Not sure if this controller is right for your facility? Get help from our expert team. Our application specialists can help you find the most efficient process control solution for your facility, and our factory-trained technicians can provide integration assistance if needed, as well as ongoing field repairs and ISO 17025-compliant calibrations.

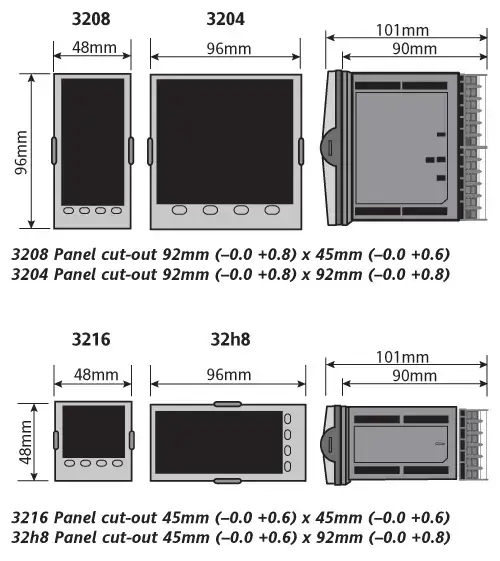

DIN Size 1/16
Input Type CT, mA, mV, RTD, TC
IP Rating IP65, NEMA12/NEMA 4X
Display Type Main: 4 Digits
Lower: 5 character starburst
Control Types On/Off, PID, VP
Alarm Types Dev, Event, Heater fail, Hi, Lo, Sensor Break
Supply Voltage 24 AC/DC, 85-264 V AC
SP Programmer 4 Ramp + 4 Dwell
Special Features Recipes, Text messaging
Analog IP/OP In 2
Analog IP/OP Out 3
Digital IP/OP In 3
Digital IP/OP Out 4
Digital Comms Modbus
