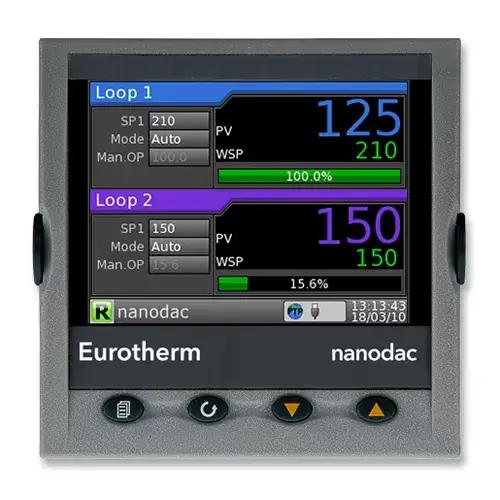

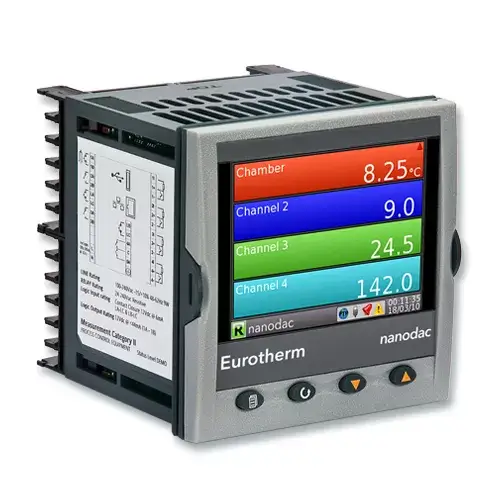

Eurotherm’s nanodac™ recorder/controller is a compact ¼ DIN panel mount unit that offers graphical recording and PID control. Its four high-accuracy universal inputs make it ideal for accurate data recording and control. This secure data recording device also includes a full-color ¼ VGA display, providing a crystal-clear operator interface that is easy to use, even on the smallest of machines.
Our specialists can do more than sell you a product—they can help you configure and install your controller and provide ongoing technical support as needed.
| Input Type | mA, mV, RTD, TC |
|---|---|
| PV Accuracy | <0.1% |
| IP Rating | IP65, NEMA12 |
| Display Type | 3.5” TFT colour, 320 x 240 pixels |
| Control Types | On/Off, PID, VP |
| Supply Voltage | 24V dc/ac, 85-264V ac |
| SP Programmer | 100 Programmes, 25 Segments Local/USB/FP |
| Timer | Yes |
| Special Features | Relative Humidity, User wiring, Washdown Faceplate, Carbon Potential |
| Analogue IP/OP | In: 8 Out: 3 |
| Digital IP/OP | In: 4 Out: 5 |
| Digital Comms | EtherNet/IP, Modbus TCP/IP |
| Maths Equation | 17 Calculations |
| Timers/Counters/Totals | 4 / 15 / 15 |
| PC Configuration | Yes |
| Control loops | 2 |
| Control Algorithms | User wired, Cascade, Single |
| Batch Management | Yes |
| Auditor Features | Yes |
| Network Addressing | DHCP, Fixed IP |
| Graphic Display | 3.5″ TFT 320 x 240 pixels |
| Protection | IP65, NEMA12 |
| Relay Outputs | Yes |
| Annotation | Yes |
| Contact Inputs | Yes |
| Mathematics | Yes |
| Counters | Yes |
| Totalisers | Yes |
| Ethernet/FTP | Yes |
| Custom Screens | No |
| Remote Viewing | Yes |
| Recording Speed | 8Hz |
| Trend Speed | >8Hz |
| USB | 1 |
| Reports | No |
| Groups | 1 |
| Review of History (on screen) | Yes |
| AMS2750F | Yes |
| Inputs | 4 |
