Tempco Cast-In Heaters

Contact Hi-Watt today for pricing.

Call 800-321-8007 or fill out our online form today to order this product or to speak with a Hi-Watt application specialist.

Description

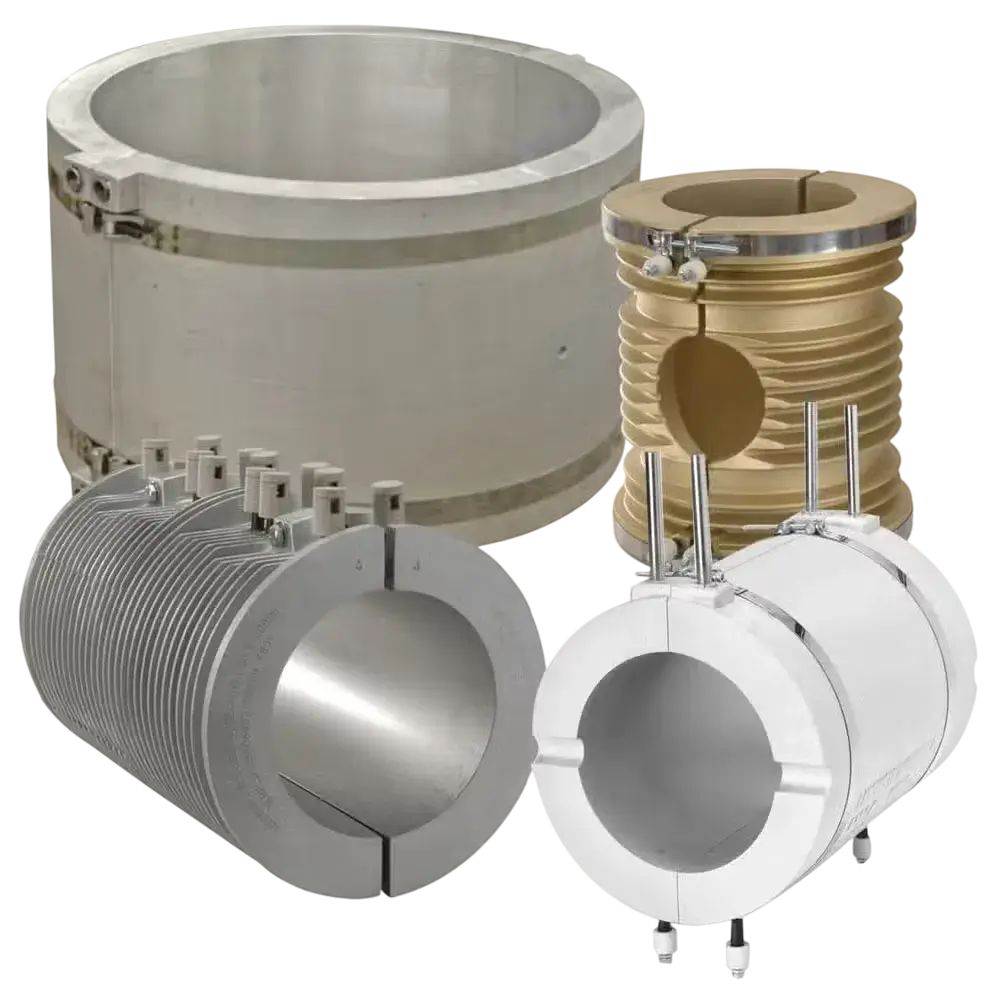

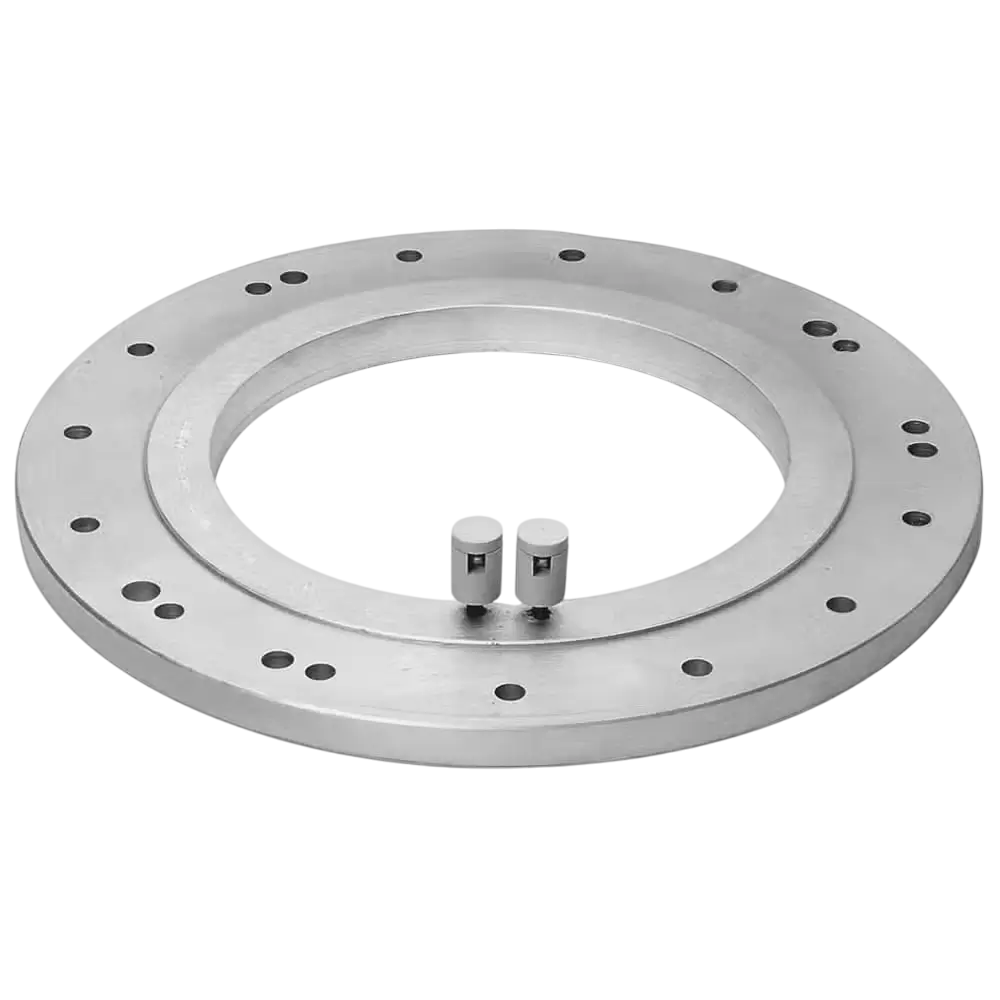

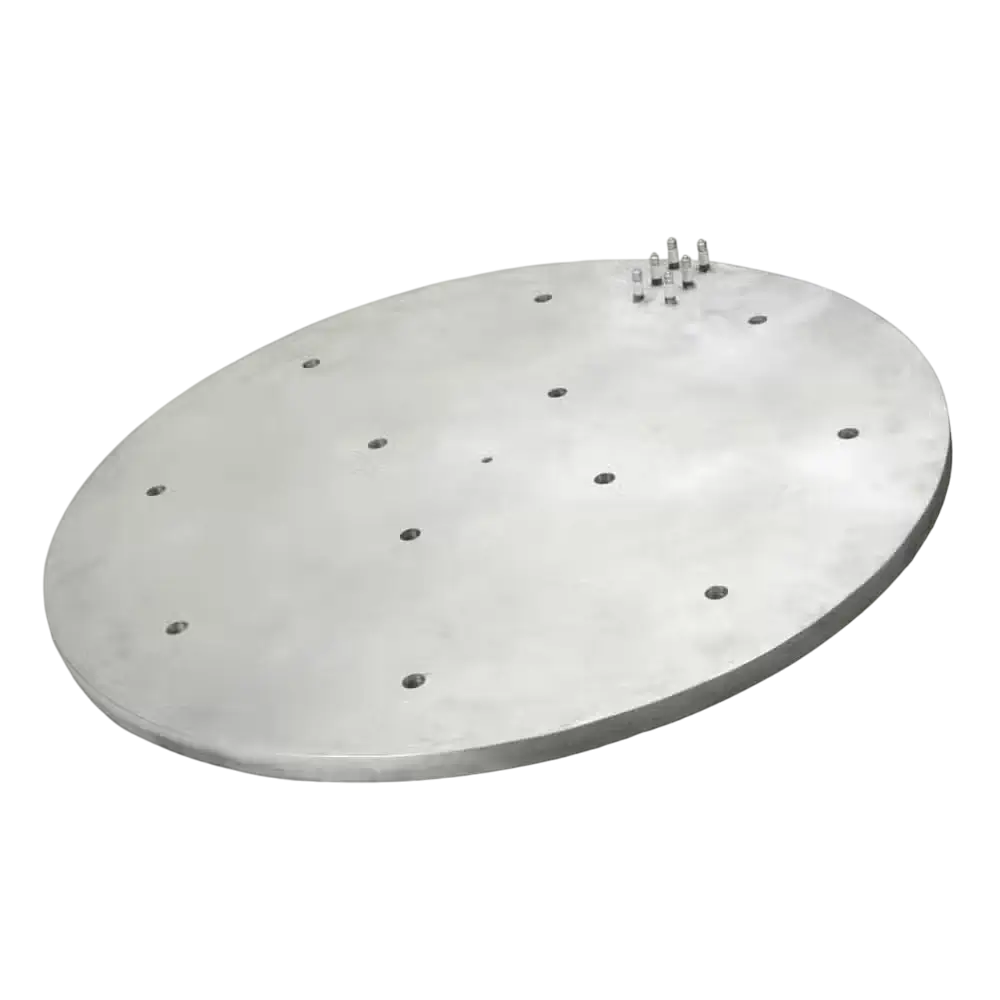

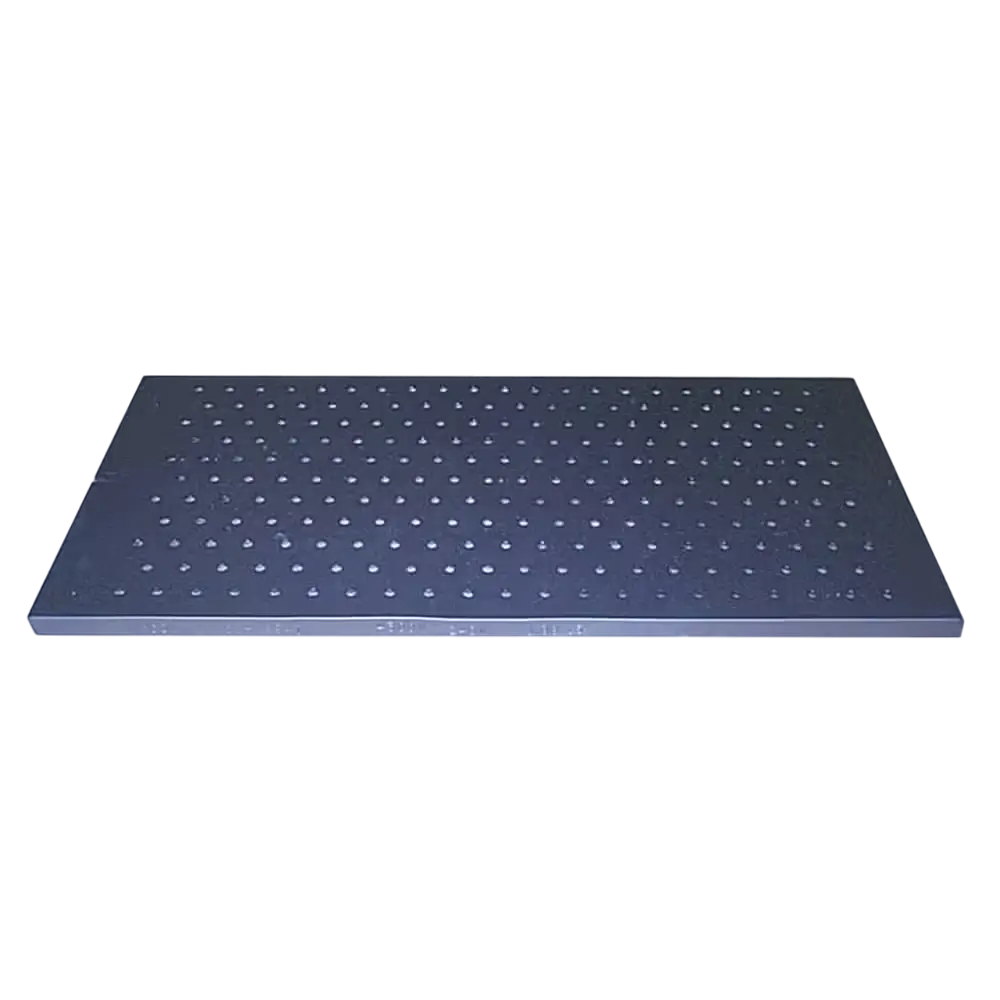

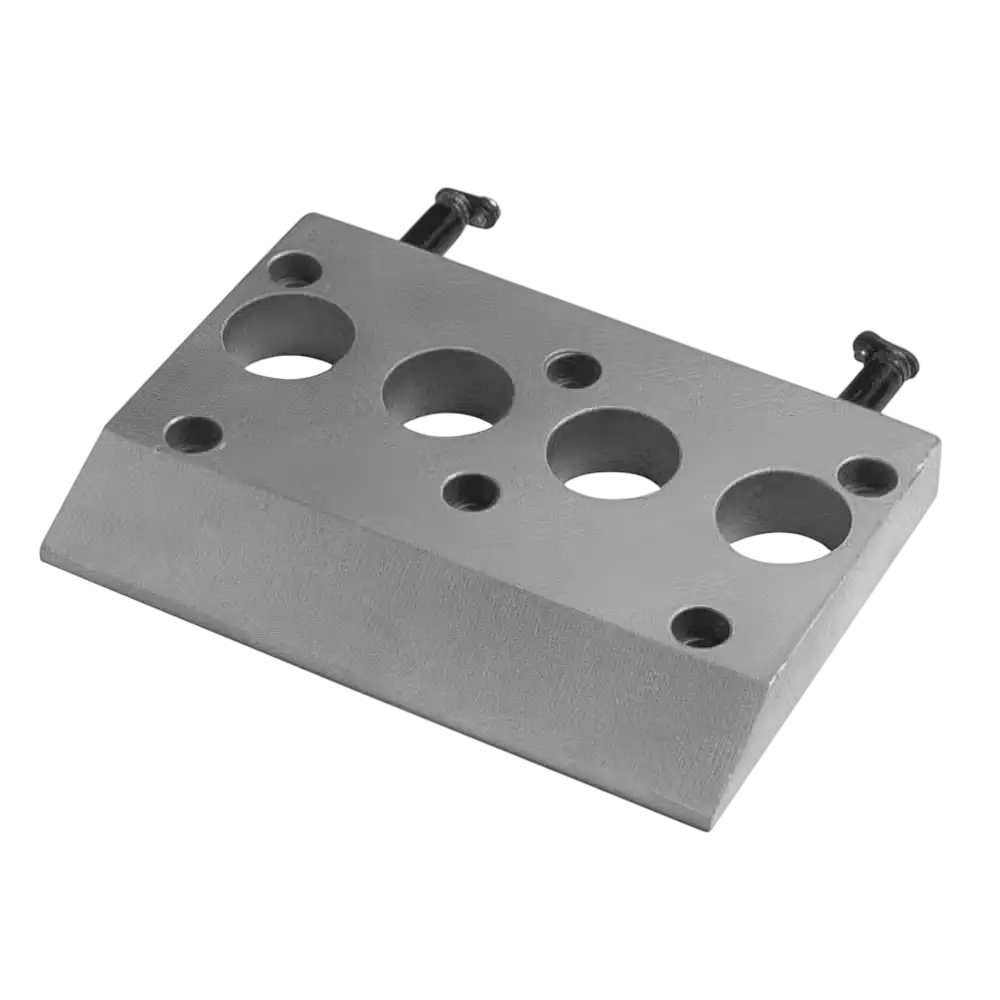

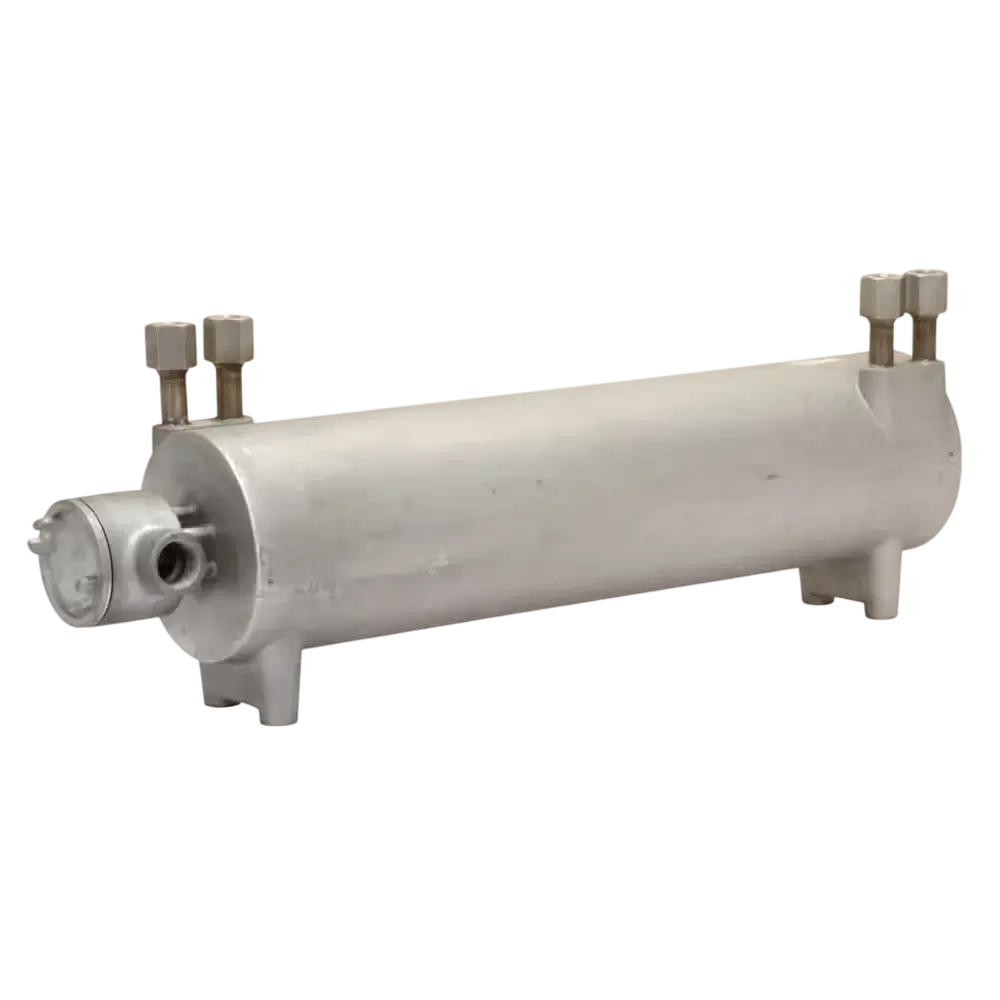

Hi-Watt carries Tempco Cast-In Heaters, available in many designs, including band, circulation, die platen, thermo-platen, semiconductor platen, and ring for use in beverage equipment, plastic extruder barrels or dies, silicon wafer processing, silk screen equipment, wave solder equipment, and more.

Most models can be constructed from aluminum, bronze, or brass alloy and are highly customizable based on unique application needs, including flat surface requirements and environmental restrictions.

0/5 (0 Reviews)
  • Air or Liquid Cooling: Cast-in heaters can be used for air-cooled or liquid-cooled systems. If the heaters are used in liquid cooling systems, they can be engineered with stainless steel tubes.
  • Highly Customizable: Hi-Watt sources and specifies Tempco Cast-In Heaters in any size, weight, or shape. Widths, lengths, diameters, material construction, exit-location configuration, surface treatments, and other factors are selected based on application requirements.
  • Optional Surface Treatments: Cast-in heaters can feature standard 125 RMS, electroless nickel plating, anodizing, Teflon®, hard-coat anodizing, or magnaplate surface treatments.

Finding the right heating solution for your thermal system can be challenging. That’s why Hi-Watt offers same-day guidance. Call or contact us online, and an application specialist will get in touch to learn more about your requirements. From there, we’ll provide recommendations on which heater design, material construction, and other specs are needed.

Hi-Watt also provides other value-added capabilities, including installation guidance and assistance, remote troubleshooting, field repairs, and replacement components.

Heater Design Band, Circulation, Platen Die, Ring, Semiconductor Platen, Thermo-Platen
Materials Aluminum 319, Bronze (UNS C95300), Brass (UNS C85700)
Maximum Sheath Temperature 650°F (343°C)
NEMA Protection Yes, NEMA 4 and 7 enclosures are available
Volts 240, 277, 480, or 600V
Maximum Watt Density 35 W/in2 (Aluminum)
45 W/in2 (Bronze or Brass)
Phase 1 or 3
Cooling Liquid or Air
Agency Approvals UL, when requested
