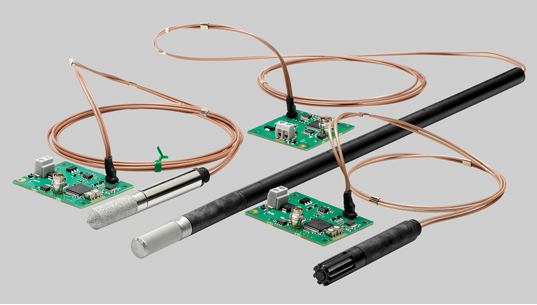

Vaisala HUMICAP® HMM100 Humidity Probe

Vaisala HUMICAP® HMM100 Humidity Probe

Starting at: $700.00

Call 800-321-8007 or fill out our online form today to order this product or to speak with a Hi-Watt application specialist.

SKU: HMM10044A1D0 Categories: , , ,

Description

Engineered for use in environmental chambers and heat sterilization applications, Vaisala’s HUMICAP® HMM100 probe offers unparalleled accuracy, high temperature tolerance, and virtually no maintenance requirements. The HMM100 module provides a single analog output channel for measuring relative humidity and/or dew point, features two trimmers that allow for easy adjustment of measurement offset and gain, and can be freely placed anywhere in a test chamber.

0/5 (0 Reviews)
  • Easy Installation: HMM100 feature two trimmers that are mounted on the component board. The module can be placed anywhere in a test chamber—the speed of airflow will not affect measurement accuracy.
  • Low Maintenance Needs: This module is a suitable replacement for psychrometers and will help you greatly reduce maintenance needs. The HMM100 doesn’t have a wick that needs replaced, there’s no need for a water tank or pump, environmental testing can be done more reliably, and easy field calibration is possible via the module’s trimmers.
  • Durable Design: The HMM100 is available in either a stainless steel or plastics construction, both of which provide exceptional high temperature tolerance, making the modules possible for use in heat sterilization applications, test chambers, and incubators.
  • Highly Accurate: Both the plastic and stainless steel models feature Vaisala’s proprietary 180R sensor to ensure excellent measurement accuracy. HMM100 can provide reliable measurements even in freezing conditions down to -94°F (-70°C) and up to 356°F (180°C).
  • Value-Added Accessories: Hi-Watt can provide optional accessories as needed, including a mounting bracket with a lid, a clamp, a USB cable, module housing, and a mounting flange.

As a turnkey thermal solutions provider, Hi-Watt offers product selection guidance, ISO 17025-compliant calibration services, on-site technical support, and installation and integration assistance. How can we help you?

Download Data Sheet
Measurement Range 0-100% RH
Calibration Uncertainty ±1.5 %RH (+68 °F/+20 °C)
Relative Humidity Accuracy (at −4 +104 °F/−20-+40 °C) ±2 %RH (0 … 90 %RH)
±3 %RH (90 … 100 %RH)
Relative Dew Point Temperature Measurement Range −4-+212 °F (20-+100 °C) Td
Relative Dew Point Accuracy ±3.6 °F (±2 °C) Td
Service Cable Connector M8 4-pin male
Probe Diameter 0.5 in.
Probe Cable Length Up to 9.5 ft.
Available Materials Stainless steel (AISI316)
Plastic (PPS)
Power Consumption 6 mA
Operating Voltage 24 VDC (for 2-wire model)
10-35 VDC (for 3-wire model when 0-10V output is used)
