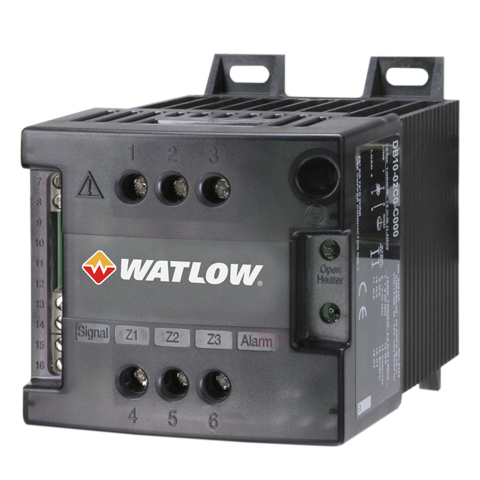

Watlow DIN-A-MITE B

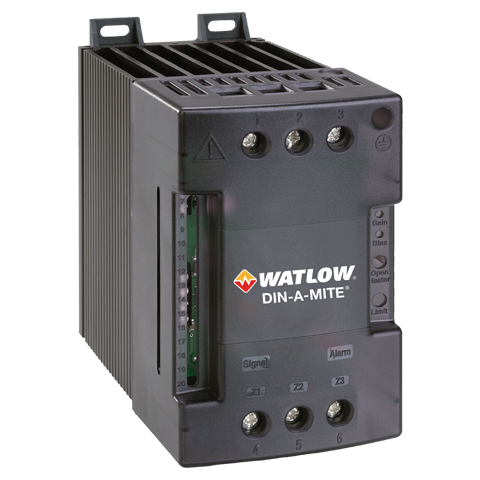

Watlow DIN-A-MITE C

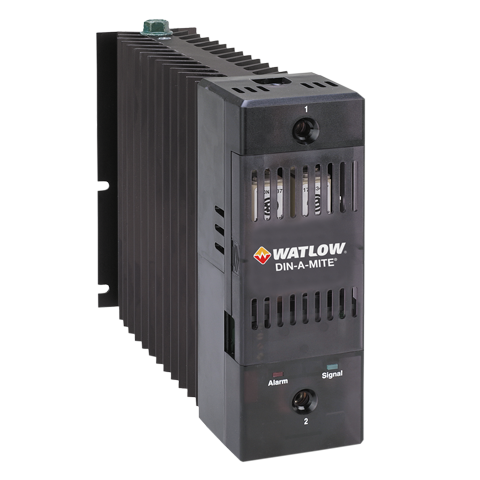

Watlow DIN-A-MITE D

Watlow DIN-A-MITE SCR POWER CONTROLLER

Starting at: $199.00

Call 800-321-8007 or fill out our online form today to order this product or to speak with a Hi-Watt application specialist.

Categories: , , ,

Description

Watlow’s innovative DIN-A-MITE® family combines SCR control, heat sink, wiring, and a touch-safe exterior in one compact design to help you extend the life of your heaters. With a DIN-A-MITE® SCR controller, you’ll achieve better control with zero cross switching, reduce wear on your entire thermal system, and lower the risk of total system failures. DIN-A-MITE® is ideal for use in food equipment, ovens/furnaces, packaging, petroleum/chemical, plastics, and semiconductor applications.

Available Models: A, B, C, and D
SKUs:
DC20-60C0-0000
DC20-60F0-0000
DB20-60F0-0000
DB20-60C0-0000
DA10-24C0-0000
DA10-24F0-0000

Download Spec Sheets

0/5 (0 Reviews)
  • Touch-Safe Exterior: Operators won’t have to worry about shock risks—every DIN-A-MITE® model is safe to handle.
  • Easy to Install: All components are pre-assembled into one unit—all you have to do is strip the wires from the unit and connect it. No tools are needed.
  • Flexible: Its compact design paired with its back panel and DIN-rail mounted options make it easy to integrate this controller into existing thermal systems.
  • Space-Saving: Because the DIN-A-MITE® packages all necessary component into one unit, you’ll save significant space, especially compared with other solid state alternatives.
  • Energy-Efficient: DIN-A-MITE® requires less power from your thermal system because it features optional variable time base switching, which automatically adjusts cycle time based on current system demands.
  • No Wires & Fasteners: Wires and fasteners can break down and loosen over time. By eliminating them, DIN-A-MITE® reduces potential hot spots that could result in total system failures.
  • Zero Cross Switching: DIN-A-MITE® features zero cross switching which helps prevent electrical interference that can cause unforeseen downtime.
  • No Set Point Deviation: Mechanical contactors and mercury displacement relays often suffer set point deviation because of their long cycle times. DIN-A-MITE® has an incredibly fast cycle time (less than 0.1 seconds), virtually eliminating set point deviation.

At Hi-Watt, we do so much more than supply products—we provide the additional support you need, including installation and setup assistance, ongoing troubleshooting and diagnostics, on-site repairs and calibrations, and more. Let us know how we can help you.

TRU-TUNE® + Adaptive Control No
Agency Approvals UL 508, C-UL, CE, SCCR
Ambient Operating Range 80 degrees Celsius/176 degrees Fahrenheit for models A, B, and C
Up to 85 degrees Celsius/185 degrees Fahrenheit for model D
Max Output Model A: 25A
Model B: 40A
Model C: 80A
Model D: 100A
Mounting DIN-rail or back mounting for models A, B, and C
Back mounting only for model D
Output Firing Zero cross for models A, B, and C
Phase angle option available for Model D
Phase Configurations Model A: 1
Model B: 1 or 3
Model C: 1 or 3
Model D: 1
Profiling No
