POWERSAFE™ Thermal System
POWERSAFE™ Thermal System
POWERSAFE™ Thermal System

POWERSAFE™ Thermal System

Starting at: $1,500.00

Call 800-321-8007 or fill out our online form today to order this product or to speak with a Hi-Watt application specialist.

Categories: , ,

Description

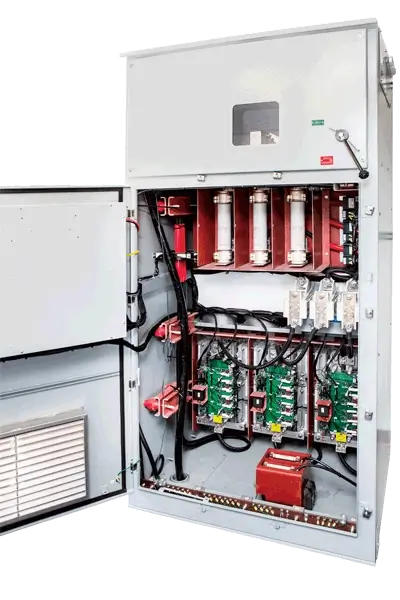

Decarbonize your existing systems with Watlow’s full-scale POWERSAFE™ Thermal System, which integrates a power system, process controller, ANSI-compatible electric heat exchanger, HMI, and PLC into one space-saving unit. By investing in this medium-voltage system, you’re eliminating the need for labor-intensive cabling and expensive step-down transformers, resulting in lower installation costs.

0/5 (0 Reviews)
  • Safe to Use: POWERSAFE™ can operate safely up to 4160V.
  • No Need for Multiple Units: You don’t need to purchase a separate display, heater, or process controller—everything is integrated into one unit.
  • SCR/Contactor Circuits: This system uses a combination of SCR and contactor circuits, which not only reduces the size and weight of its integrated power controller but also allows it to deliver high-efficiency power (up to 20MW).
  • Added Protections: POWERSAFE™ features a rapid shut-down option through its high-speed protective relay and breaker. The input, power, and controller output terminals are also touch-safe removable.
  • Safety Interlocks: This system’s controller and heater include mechanical and electrical interlocks to ensure worker safety during operation.
  • Zero-Cross SCR Control: Electromagnetic interference risks are low with POWERSAFE™.

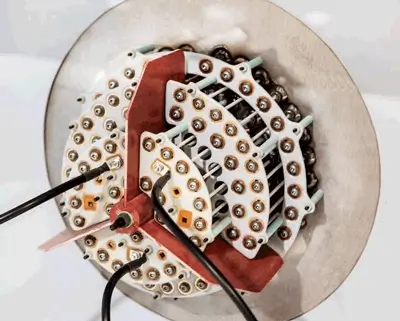

  • Flexible Heat Exchanger Solutions: This system can be customized to integrate Watlow’s HELIMAX or OPTIMAX heat exchangers based on application requirements.

Whether you need help finding the right solution, installation assistance, or ongoing technical support, Hi-Watt is here to help you every step of the way. We’re proud to be one of Michigan’s leading providers of industrial heating solutions.

Connectivity Ethernet With Modbus® TCP
Frequency (Power Controller) 50/60 Hz
Voltage (Power Controller) 4160 VAC 300A 3-phase, 3 controlled legs
Voltage (Flange Heater) 4160 VAC 3-phase
Agency Approvals Power Controller: UL 347, 347C, or 608A (Power Controller)
Flange Heater: Ordinary or Class 1, Div. 2 Groups B, C, and D (stamped to ASME Code)
Load Monitoring Phase current measurement, ground fault, and current imbalance
