Watlow Tube & Wire Thermocouples

Watlow Tube & Wire Thermocouples

To order this product please call us at: 800-321-8007

Configure Product

Categories: , ,

Description

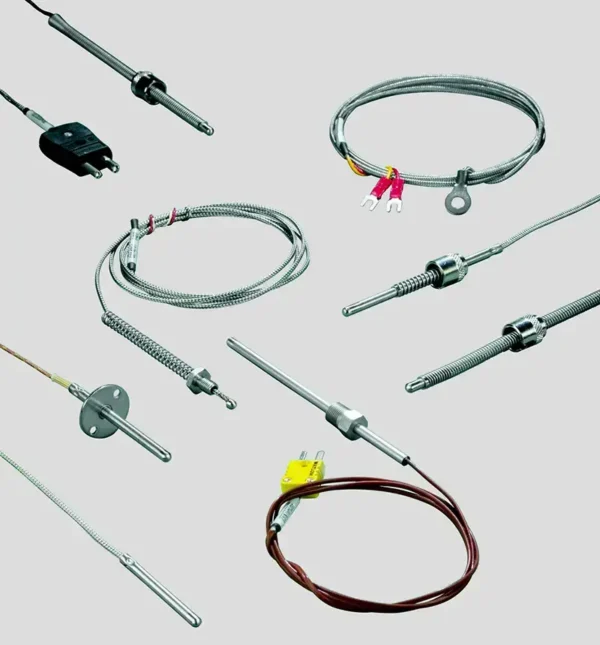

Watlow’s world-class tube and wire thermocouples provide optimal temperature monitoring in medium-duty applications, such as medical equipment, pipe tracing control, plating baths, packaging equipment, and industrial heat treating. Each thermocouple is customized to meet specific application requirements, can operate up to 900 degrees Fahrenheit, and can be constructed from flexible SERV-RITE® wire or high-temperature resins.

0/5 (0 Reviews)
  • ASTM E230 color-coding
  • Metal sheath for added protection and rigidity
  • Wide array of mounting options, including springs, ring terminals, specialized bolts, shims, and pipe-style clamps
  • 32 sheath lengths available
  • PFA-coated or stainless steel sheaths available
  • Grounded, ungrounded, and exposed junction options
  • Locking bayonet caps
  • Flat and drill point configurations available
  • 300 series stainless steel tubing and flexible armor for added abrasion resistance

Hi-Watt provides turnkey services to manufacturers throughout Michigan. Our team includes application specialists who can help you find the best sensing option, installers who can provide on-site assistance, and technical support who can provide ongoing troubleshooting advice.

Lead Lengths Between 6 and 360″
Calibration Options J, K, T, E
Bend Configuration 45 or 90 degrees
Maximum Temperature Up to 900 degrees Fahrenheit
Outside Diameter 1/8″, 3/16″, 1/4″
